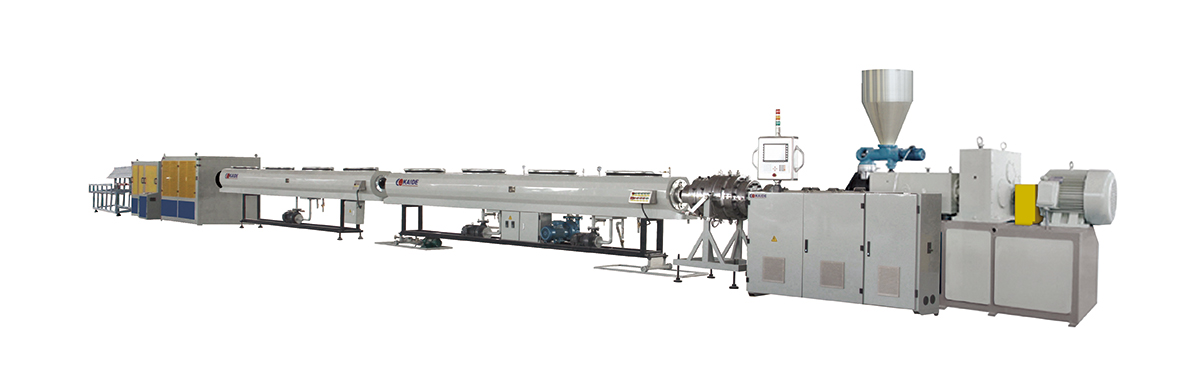

Multi-function U-PVC Pipe Production Line

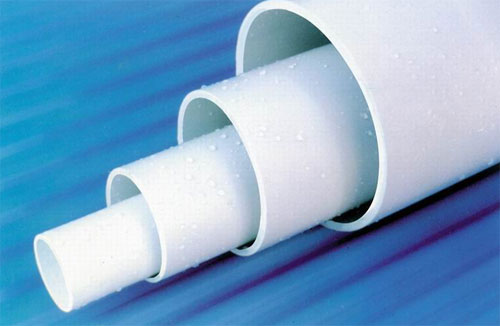

U-PVC pipe production line adopts conical double screw extruder, which is suitable for a variety of raw material formulation, with better plasticizing & dispersion effects. It is widely used in the production of different kinds of water supply & drainage pipes.

Line Model	Extruder Model	Production Scope	Output	Nominal Power
SJSZ-51	SISZ-51/105	ф50-110mm	150Kg/h	52KW
SJSZ-65	SJSZ-65/132	ф75-200mm	250Kg/h	86KW
SJSZ-80	SJSZ-80/156	Ф200-450mm	450Kg/h	169KW
SJSZ-92	SJSZ-92/188	Ф400-630mm	750Kg/h	277KW

??◎ U-PVC pipe production line adopts double chamber vacuum calibrating andspray cooling, with automatic water temperature control and automatic watersupply and discharge control functions.??

??◎ U-PVC pipe line adopts the imported PLC control system, which ensures thehigh speed synchronous control and reliable operating of the whole productionline.??

◎ Equipped with different die head and auxiliary machines, it can produceU-PVC pipes for single layer, core layer foaming, inner spiral foaming, hollowor hollow inner spiral.

?
